產品中心 > BM1260F-0527-42

BM1260F-0527-42

產品詳情

1. SPECIFICATION
Electro-Magnetic Buzzer
1	Dimension		Φ12.0×H6.0
2	Net Weight		Approx 1.5g
3	Rated Voltage		5Vo-p
4	Operating Voltage		3～7 Vo-p
5	Rated Current		Max.70mA ,at 2731Hz 50% duty Square Wave 5Vo-p
6	Sound Output		Min. 85dB,at 2731Hz 50% duty Square Wave 5Vo-p
7	Coil Resistance		42±4Ω
8	Resonant Frequency		2731Hz
9	Operating Temperature		-20℃～+70℃
10	Store Temperature		-30℃～+80℃
11	Pin		L1=5.0±0.5,Φ=0.6±0.1mm
Dimensions		Unit: mm

Unit: mm; Tolerance: ±0.5mm Except Specified Housing Material: Black PPO

2. Reliability Test

After any following tests the part shall meet specifications without any degradation in

appearance and performance except SPL. SPL shall not deviate more than -10 dB

from the initial value

2.1 Ordinary Temperature Life Test

The part shall be subjected to 96 hours at 25±10℃. Input rated voltage

Resonant frequency, 1/2 duty Square wave.

2.2 High Temperature Test

The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.

2.3 Low Temperature Test

The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.

2.4 Humidity Test

Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours

and expose to room temperature for 6 hours

2.5 Temperature Shock Test

Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)

Total cycle: 10 cycles

2.6 Drop Test

Standard Packaging From 1.2m(Drop on hard wood or board of 5cm thick,

three sides, six plain.)

2.7 Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

3. Electrical And Acoustical Measuring Condition

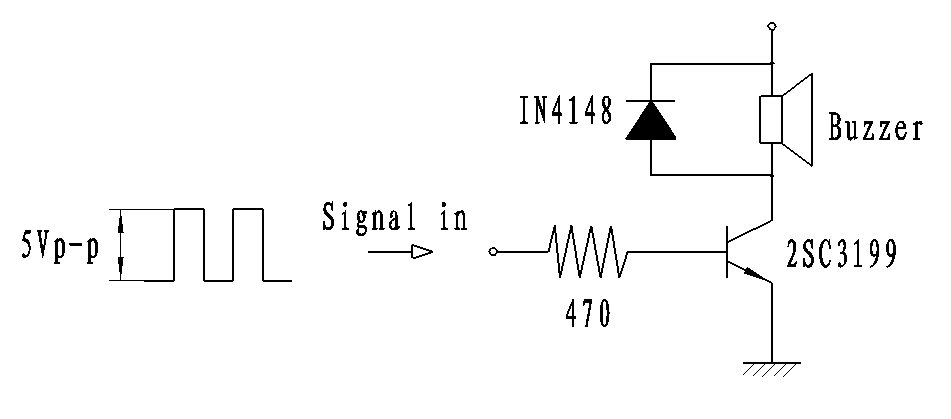

3.1 Recommended Driving Circuit

Resonant frequency, 1/2 duty cycle. Square wave.Signal amplitude should be large enough to saturate the transistor.
